FPGA Audio Visualizer

A real-time FPGA-powered audio visualizer that transforms music into a dynamic LED spectrum display using digital signal processing.

FPGA Audio Visualizer main project image

video

readme.txt

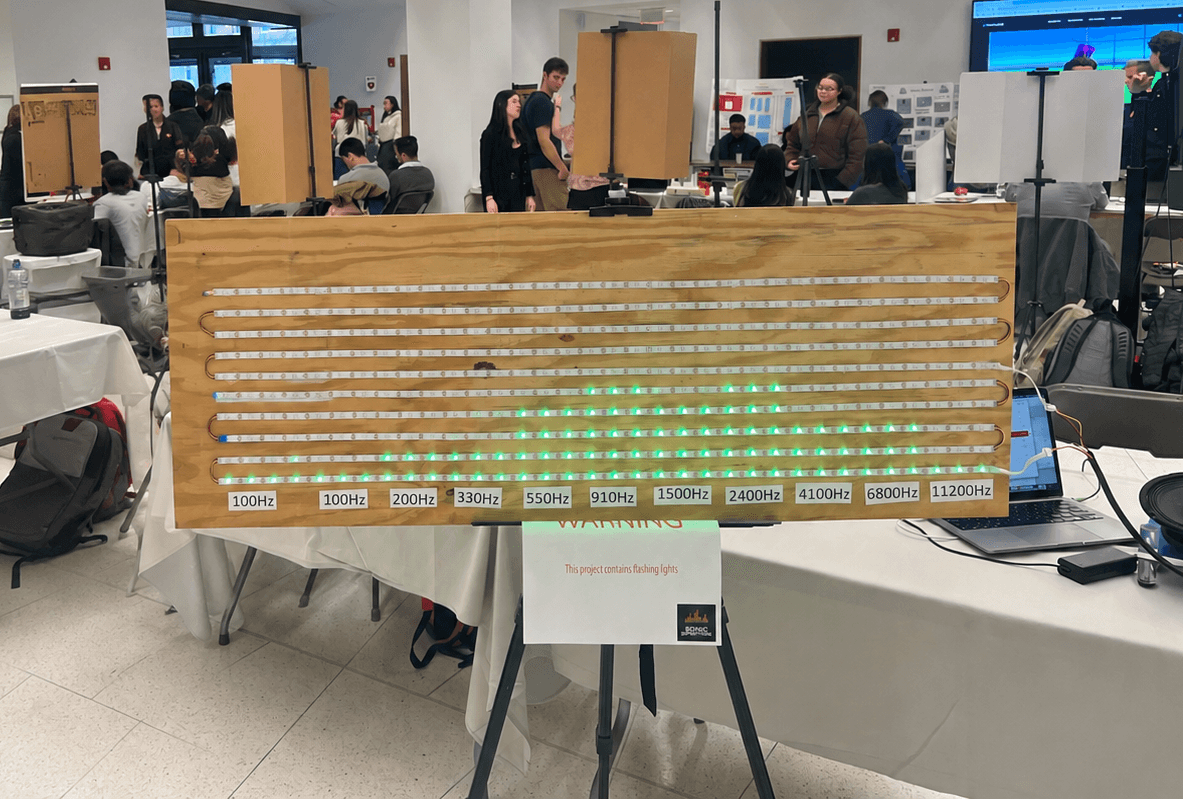

Built a real-time FPGA-based audio visualizer that converts music into a dynamic LED display. The system processes an AUX audio input through ten digital band-pass filters, with each frequency band controlling a column of a 10×10 LED matrix. Additional shelving filters allow bass and treble adjustment, creating a responsive spectrum analyzer that reacts to the music in real time. The project earned **3rd Place Overall** among senior capstone projects for its technical execution and innovation.
